Base class for all components attached to an Actor. More...

#include <Component.h>

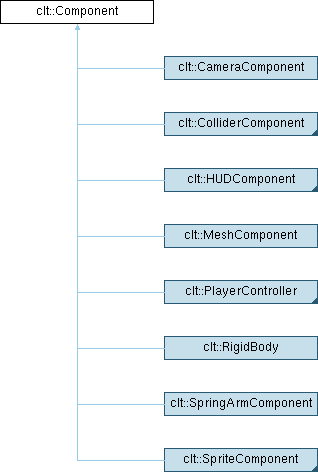

Inheritance diagram for clt::Component:

Public Member Functions
	Component (int pUpdateOrder=0)
	Constructor for Component.

virtual	~Component ()=default
	Virtual destructor for Component.

virtual void	Start ()
	Called when the component is started.

virtual void	Update ()
	Called every frame to update the component.

virtual void	Destroy ()
	Called to destroy the component.

void	SetActive (bool pActive)
	Enables or disables the component.

void	OnDestroy ()
	Called when the component is destroyed.

bool	IsActive () const
	Checks if the component is enabled.

int	GetUpdateOrder () const
	Gets the update order of the component.

void	SetRelativeLocation (const Vector3 &loc)
	Sets the relative location of the component.

void	SetRelativeLocation (const Vector2 &loc)
	Sets the relative location of the component.

void	SetWorldLocation (const Vector3 &loc)
	Sets the world location of the component.

void	SetRelativeScale (const Vector3 &scale)
	Sets the relative scale of the component.

void	SetRelativeScale (const Vector2 &scale)
	Sets the relative scale of the component.

void	SetRelativeRotation (Quaternion rot)
	Sets the relative rotation of the component.

void	SetRelativeRotation (Vector3 rot)
	Sets the relative rotation of the component.

void	SetWorldRotation (const Quaternion &rot)
	Sets the world rotation of the component.

void	SetWorldRotation (const Vector3 &rot)
	Sets the world rotation of the component.

void	AddRelativeRotation (Vector3 rot)
	Adds a rotation to the current relative rotation.

void	SetRelativeRotation (float rot)
	Sets the relative rotation of the component.

void	SetRelativeTransform (Transform &transform)
	Sets the relative transform of the component.

Vector3	GetRelativeLocation () const
	Gets the relative location of the component.

Vector3	GetRelativeScale () const
	Gets the relative scale of the component.

Quaternion	GetRelativeRotation () const
	Gets the relative rotation of the component.

Vector3	GetRelativeRotationEuler () const
	Gets the relative rotation of the component as Euler angles.

Transform	GetRelativeTransform () const
	Gets the relative transform of the component.

Vector3	GetWorldLocation () const
	Gets the world location of the component.

Vector3	GetWorldScale () const
	Gets the world scale of the component.

Quaternion	GetWorldRotation () const
	Gets the world rotation of the component.

virtual Transform	GetWorldTransform () const
	Gets the world transform of the component.

Actor *	GetOwner () const
	Gets the owner actor of this component.

Public Attributes
friend	Actor

Protected Member Functions
virtual void	SetOwner (Actor *pOwner)
	Sets the owner of this component and calls Start().

bool	LineTrace (Vector3 start, Vector3 direction, float maxDistance, raycastHit &hit, bool debugPersistant=false)
	Performs a line trace (raycast) using the owning actor.

Protected Attributes
bool	mIsActive = true
	Indicates if the component is active.

int	mUpdateOrder = 0
	The order in which the component is updated.

Actor *	mOwner
	The actor that owns this component.

Transform	mRelativeTransform
	The relative transform of the component to its owner.

Detailed Description

Base class for all components attached to an Actor.

Constructor & Destructor Documentation

◆ Component()

clt::Component::Component ( int pUpdateOrder = 0 )

inline

Constructor for Component.

Parameters

pUpdateOrder The order in which the component is updated.

Member Function Documentation

◆ AddRelativeRotation()

void clt::Component::AddRelativeRotation ( Vector3 rot )

inline

Adds a rotation to the current relative rotation.

Parameters

rot	The rotation to add as a Vector3 (Euler angles).

◆ GetOwner()

Actor * clt::Component::GetOwner ( ) const

inline

Gets the owner actor of this component.

Returns: Pointer to the owner Actor.

◆ GetRelativeLocation()

Vector3 clt::Component::GetRelativeLocation ( ) const

inline

Gets the relative location of the component.

Returns: The relative location as a Vector3.

◆ GetRelativeRotation()

Quaternion clt::Component::GetRelativeRotation ( ) const

inline

Gets the relative rotation of the component.

Returns: The relative rotation as a Quaternion.

◆ GetRelativeRotationEuler()

Vector3 clt::Component::GetRelativeRotationEuler ( ) const

inline

Gets the relative rotation of the component as Euler angles.

Returns: The relative rotation as a Vector3 (Euler angles).

◆ GetRelativeScale()

Vector3 clt::Component::GetRelativeScale ( ) const

inline

Gets the relative scale of the component.

Returns: The relative scale as a Vector3.

◆ GetRelativeTransform()

Transform clt::Component::GetRelativeTransform ( ) const

inline

Gets the relative transform of the component.

Returns: The relative transform.

◆ GetUpdateOrder()

int clt::Component::GetUpdateOrder ( ) const

inline

Gets the update order of the component.

Returns: The update order of the component.

◆ GetWorldLocation()

Vector3 clt::Component::GetWorldLocation ( ) const

inline

Gets the world location of the component.

Returns: The world location as a Vector3.

◆ GetWorldRotation()

Quaternion clt::Component::GetWorldRotation ( ) const

inline

Gets the world rotation of the component.

Returns: The world rotation as a Quaternion.

◆ GetWorldScale()

Vector3 clt::Component::GetWorldScale ( ) const

inline

Gets the world scale of the component.

Returns: The world scale as a Vector3.

◆ GetWorldTransform()

virtual Transform clt::Component::GetWorldTransform ( ) const

inlinevirtual

Gets the world transform of the component.

Returns: The world transform.

◆ IsActive()

bool clt::Component::IsActive ( ) const

inline

Checks if the component is enabled.

Returns: True if the component is enabled, false otherwise.

◆ LineTrace()

bool clt::Component::LineTrace	(	Vector3	start,
		Vector3	direction,
		float	maxDistance,
		raycastHit &	hit,
		bool	debugPersistant = false )

inlineprotected

Performs a line trace (raycast) using the owning actor.

Parameters

start	The start position of the trace.
direction	The direction of the trace.
maxDistance	The maximum distance for the trace.
hit	The result of the raycast.
debugPersistant	Whether to persist debug visualization.

Returns: True if something was hit, false otherwise.

◆ SetActive()

void clt::Component::SetActive ( bool pActive )

inline

Enables or disables the component.

Parameters

pActive True to enable the component, false to disable it.

◆ SetOwner()

virtual void clt::Component::SetOwner ( Actor * pOwner )

inlineprotectedvirtual

Sets the owner of this component and calls Start().

Parameters

pOwner The actor that owns this component.

Reimplemented in clt::ColliderComponent, clt::FlipbookComponent, clt::HUDComponent, clt::MeshComponent, clt::PlayerController2D, clt::RigidBody, and clt::SpriteComponent.

◆ SetRelativeLocation() [1/2]

void clt::Component::SetRelativeLocation ( const Vector2 & loc )

inline

Sets the relative location of the component.

Parameters

loc	The new relative location as a Vector2.

◆ SetRelativeLocation() [2/2]

void clt::Component::SetRelativeLocation ( const Vector3 & loc )

inline

Sets the relative location of the component.

Parameters

loc	The new relative location as a Vector3.

◆ SetRelativeRotation() [1/3]

void clt::Component::SetRelativeRotation ( float rot )

inline

Sets the relative rotation of the component.

Parameters

rot	The new relative rotation as a float (for 2D).

◆ SetRelativeRotation() [2/3]

void clt::Component::SetRelativeRotation ( Quaternion rot )

inline

Sets the relative rotation of the component.

Parameters

rot	The new relative rotation as a Quaternion.

◆ SetRelativeRotation() [3/3]

void clt::Component::SetRelativeRotation ( Vector3 rot )

inline

Sets the relative rotation of the component.

Parameters

rot	The new relative rotation as a Vector3 (Euler angles).

◆ SetRelativeScale() [1/2]

void clt::Component::SetRelativeScale ( const Vector2 & scale )

inline

Sets the relative scale of the component.

Parameters

scale The new relative scale as a Vector2.

◆ SetRelativeScale() [2/2]

void clt::Component::SetRelativeScale ( const Vector3 & scale )

inline

Sets the relative scale of the component.

Parameters

scale The new relative scale as a Vector3.

◆ SetRelativeTransform()

void clt::Component::SetRelativeTransform ( Transform & transform )

inline

Sets the relative transform of the component.

Parameters

transform The new relative transform.

◆ SetWorldLocation()

void clt::Component::SetWorldLocation ( const Vector3 & loc )

inline

Sets the world location of the component.

Parameters

loc	The new world location.

◆ SetWorldRotation() [1/2]

void clt::Component::SetWorldRotation ( const Quaternion & rot )

inline

Sets the world rotation of the component.

Parameters

rot	The new world rotation as a Quaternion.

◆ SetWorldRotation() [2/2]

void clt::Component::SetWorldRotation ( const Vector3 & rot )

inline

Sets the world rotation of the component.

Parameters

rot	The new world rotation as a Vector3 (Euler angles).

◆ Start()

virtual void clt::Component::Start ( )

inlinevirtual

Called when the component is started.

Reimplemented in BowlingController, clt::SpringArmComponent, DoomController, and DoomHUD.

◆ Update()

virtual void clt::Component::Update ( )

inlinevirtual

Called every frame to update the component.

Reimplemented in BowlingController, clt::CameraComponent, clt::FlipbookComponent, clt::FPSController, clt::HUDComponent, clt::PlayerController2D, clt::SpringArmComponent, DoomController, DoomHUD, and MainMenuHUD.

The documentation for this class was generated from the following file:

D:/DEV JEUX/2025/CPP/Opengl/ClutterEngineOpenGL/ClutterEngine/Engine/Core/ActorComponent/Component.h
