clt::ColliderComponent Class Reference

Base class for all collider components in the engine. More...

#include <ColliderComponent.h>

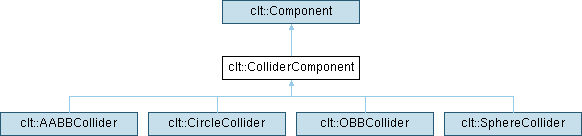

Inheritance diagram for clt::ColliderComponent:

Public Member Functions
	ColliderComponent ()
	Default constructor. Initializes friction, bounciness, and collider type.
	~ColliderComponent ()
	Destructor.
void	Subscribe (class ICollisionListener *listener) const
	Subscribes a collision listener to this collider.
virtual bool	CheckCollision (ColliderComponent *pOther, hitResult &outResult) const =0
	Checks for collision with another collider.
const ColliderType	GetType () const
	Gets the type of this collider.
bool	IsTrigger () const
	Checks if this collider is a trigger.
Public Member Functions inherited from clt::Component
	Component (int pUpdateOrder=0)
	Constructor for Component.
virtual	~Component ()=default
	Virtual destructor for Component.
virtual void	Start ()
	Called when the component is started.
virtual void	Update ()
	Called every frame to update the component.
virtual void	Destroy ()
	Called to destroy the component.
void	SetActive (bool pActive)
	Enables or disables the component.
void	OnDestroy ()
	Called when the component is destroyed.
bool	IsActive () const
	Checks if the component is enabled.
int	GetUpdateOrder () const
	Gets the update order of the component.
void	SetRelativeLocation (const Vector3 &loc)
	Sets the relative location of the component.
void	SetRelativeLocation (const Vector2 &loc)
	Sets the relative location of the component.
void	SetWorldLocation (const Vector3 &loc)
	Sets the world location of the component.
void	SetRelativeScale (const Vector3 &scale)
	Sets the relative scale of the component.
void	SetRelativeScale (const Vector2 &scale)
	Sets the relative scale of the component.
void	SetRelativeRotation (Quaternion rot)
	Sets the relative rotation of the component.
void	SetRelativeRotation (Vector3 rot)
	Sets the relative rotation of the component.
void	SetWorldRotation (const Quaternion &rot)
	Sets the world rotation of the component.
void	SetWorldRotation (const Vector3 &rot)
	Sets the world rotation of the component.
void	AddRelativeRotation (Vector3 rot)
	Adds a rotation to the current relative rotation.
void	SetRelativeRotation (float rot)
	Sets the relative rotation of the component.
void	SetRelativeTransform (Transform &transform)
	Sets the relative transform of the component.
Vector3	GetRelativeLocation () const
	Gets the relative location of the component.
Vector3	GetRelativeScale () const
	Gets the relative scale of the component.
Quaternion	GetRelativeRotation () const
	Gets the relative rotation of the component.
Vector3	GetRelativeRotationEuler () const
	Gets the relative rotation of the component as Euler angles.
Transform	GetRelativeTransform () const
	Gets the relative transform of the component.
Vector3	GetWorldLocation () const
	Gets the world location of the component.
Vector3	GetWorldScale () const
	Gets the world scale of the component.
Quaternion	GetWorldRotation () const
	Gets the world rotation of the component.
virtual Transform	GetWorldTransform () const
	Gets the world transform of the component.
Actor *	GetOwner () const
	Gets the owner actor of this component.

Public Attributes
float	mFriction
	The friction coefficient of the collider.
float	mBounciness
	The bounciness (restitution) of the collider.
Public Attributes inherited from clt::Component
friend	Actor

Protected Member Functions
virtual void	SetOwner (Actor *pOwner) override
	Sets the owner actor of this collider component.
Protected Member Functions inherited from clt::Component
bool	LineTrace (Vector3 start, Vector3 direction, float maxDistance, raycastHit &hit, bool debugPersistant=false)
	Performs a line trace (raycast) using the owning actor.

Protected Attributes
bool	mTrigger = false
	Indicates if the collider is a trigger.
ColliderType	mType
	The type of the collider.
Protected Attributes inherited from clt::Component
bool	mIsActive = true
	Indicates if the component is active.
int	mUpdateOrder = 0
	The order in which the component is updated.
Actor *	mOwner
	The actor that owns this component.
Transform	mRelativeTransform
	The relative transform of the component to its owner.

Detailed Description

Base class for all collider components in the engine.

ColliderComponent provides the interface and common functionality for all collider types. It supports trigger colliders, friction, bounciness, and collision event subscription.

Member Function Documentation

CheckCollision()

virtual bool clt::ColliderComponent::CheckCollision ( ColliderComponent * pOther, hitResult & outResult ) const

pure virtual

Checks for collision with another collider.

Parameters

pOther	Pointer to the other collider component.
outResult	Output parameter for collision result details.

Returns

True if a collision is detected, false otherwise.

Implemented in clt::AABBCollider, clt::CircleCollider, clt::OBBCollider, and clt::SphereCollider.

GetType()

const ColliderType clt::ColliderComponent::GetType ( ) const

inline

Gets the type of this collider.

Returns

The collider type.

IsTrigger()

bool clt::ColliderComponent::IsTrigger ( ) const

inline

Checks if this collider is a trigger.

Returns

True if the collider is a trigger, false otherwise.

SetOwner()

void ColliderComponent::SetOwner ( Actor * pOwner )

overrideprotectedvirtual

Sets the owner actor of this collider component.

Parameters

pOwner

Pointer to the owning Actor.

Reimplemented from clt::Component.

Subscribe()

void ColliderComponent::Subscribe

(

class ICollisionListener *

listener

)

const

Subscribes a collision listener to this collider.

Parameters

listener

Pointer to the ICollisionListener to subscribe.

---

The documentation for this class was generated from the following files:

• D:/DEV JEUX/2025/CPP/Opengl/ClutterEngineOpenGL/ClutterEngine/Engine/Core/ActorComponent/Components/Collisions/ColliderComponent.h
• D:/DEV JEUX/2025/CPP/Opengl/ClutterEngineOpenGL/ClutterEngine/Engine/Core/ActorComponent/Components/Collisions/ColliderComponent.cpp
